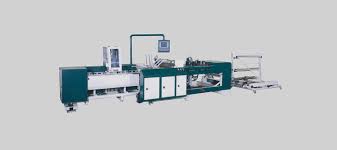

Wicketer Side Seal Machine

TECHNICAL DETAILS
Model VELOS 630W VELOS 800W
Web Width Max Before Fold 1250 1500
Web Width Min Before Fold 410 410
Bag Width Max 400 / 600 400 / 600
Bag Width Min 150 150
Bag Length Max 600 750
Bag Length Min 200 200
Gusset Depth Max 75 75
Gusset Depth Min 25 25
Speed (Cycles/Min) 300 250
Vaccum Arms 16”(410)/ 24” (600) 16”(410)/ 24”(600)
Pin Stacker 3 +1 3 +1
Connected Load Basic M/C (KW) 25 KW 28 KW
Film Processing Data (Microns) Max/Min Max/Min
HDPE 50/20 50/20
LDPE/LLDPE 60/25 60/25
CPP 60/25 60/25
Max Film Diameter on Unwimd 1000mm diameter 1000mm diameter
Category:

Description

Technical Data
Unwinder EPC
Dancer (Unwinder) Pneumatic
Film Folding Device Motorised Controlled
Online Gusset Unit
Unwinder Nip AC Motor
Dancer Pneumatic with contact less control with distance sensor
Tail Feed Servo Driven with Pneumatically operated Nip
Wicket Hole Punches Pneumatic with EPC
Photocell Mounted on Rack & Pinion
Film Index Drive Servo Driven
Cranking (Dwell Time) Main Sealing Blade Servo Driven
Conveyor Drive AC Motor
Windmill Arms Servo Driven with Adjustable top Clutch
Pin Stacker Servo Driven with Motorised control
Last Pin Stack Machine Stop System
